Name: YUPO IML
Brand: YUPO

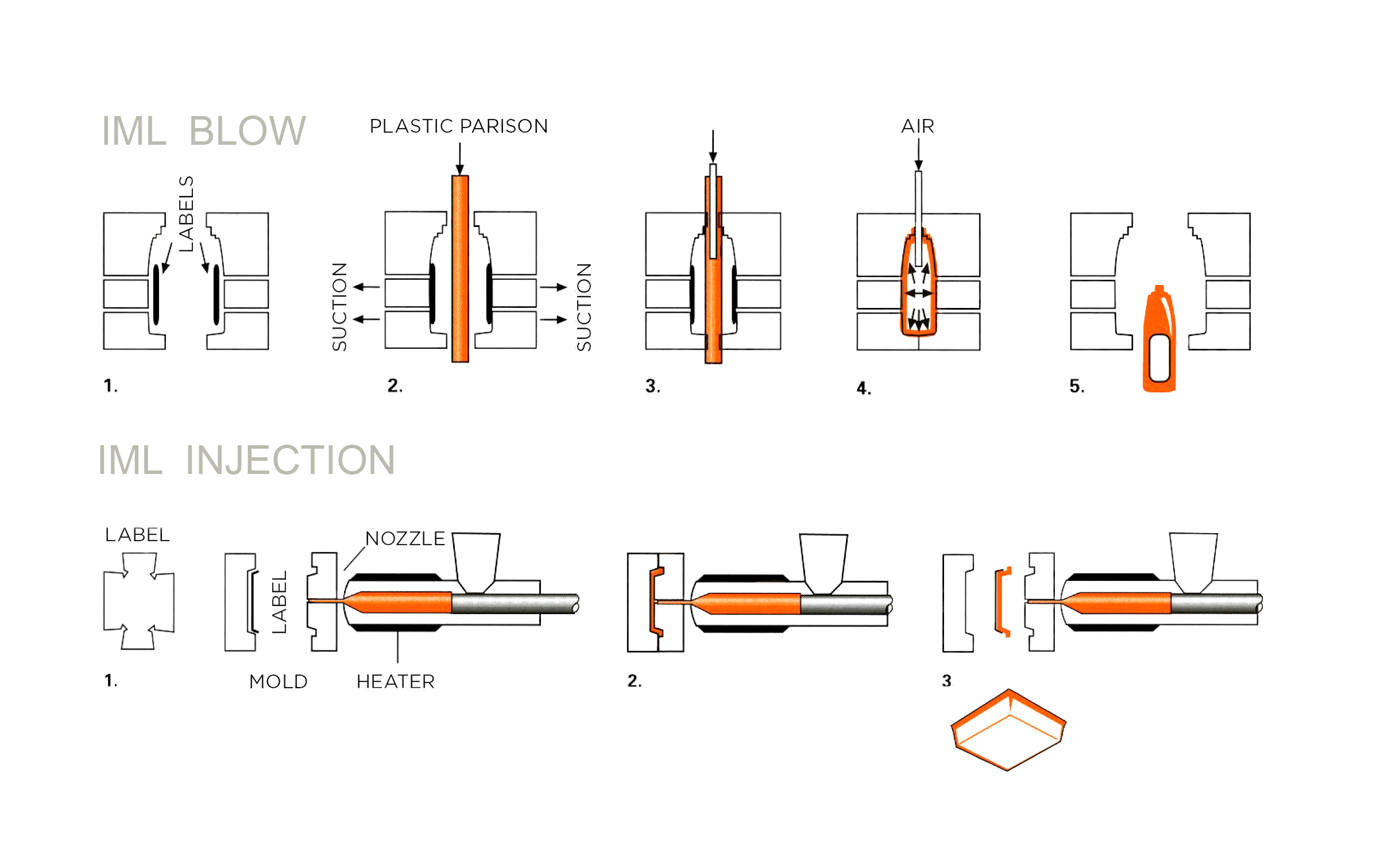

What is in-mold labeling?

In-mold labelling (IML) is a pre-decorating technique during which a label is placed in the open mold and becomes an integral part of the molded object when the bottle is blow molded or the container is injected. YUPOIML becomes a part of the container, thereby resulting in superior performance.

What is in-mold labeling?

In-mold labelling (IML) is a pre-decorating technique during which a label is placed in the open mold and becomes an integral part of the molded object when the bottle is blow molded or the container is injected. YUPOIML becomes a part of the container, thereby resulting in superior performance.

Enhance Your Packaging.

Why Choose YUPO IML?

YUPOIML is one of the most sustainable labeling solutions and provides outstanding appearance, high resistance and environmental advantages. Reduce waste! Be recyclable and contribute to the Circular Economy!

Enhance Your Packaging.

Why Choose YUPO IML?

YUPOIML is one of the most sustainable labeling solutions and provides outstanding appearance, high resistance and environmental advantages. Reduce waste! Be recyclable and contribute to the Circular Economy!

Significant Benefits

A Responsible and Sustainable Packaging Solution

We at YUPO are taking care of the environment and work closely together with Recyclers and related companies. We are aware of the upcoming recycling regulations and provide the best solutions to brand owners by guiding them through the design phase. YUPOIML is RecyClass certified and can be re-used in the high value stream. By choosing YUPOIML, you immediately eleminate 100% of liner waste and use one of the most eco-friendly labeling solutions.

INFO PDF DOWNLOAD

A Responsible and Sustainable Packaging Solution

We at YUPO are taking care of the environment and work closely together with Recyclers and related companies. We are aware of the upcoming recycling regulations and provide the best solutions to brand owners by guiding them through the design phase. YUPOIML is RecyClass certified and can be re-used in the high value stream. By choosing YUPOIML, you immediately eleminate 100% of liner waste and use one of the most eco-friendly labeling solutions.

INFO PDF DOWNLOAD

YUPO Europe GmbH becomes RecyClass Platinum Member

YUPO Europe GmbH is proud to join forces with the RecyClass initiative, becoming the most recent company to join the platform, which was started by Plastics Recyclers Europe, the leading European organization representing the voice of plastics recyclers, in 2018.

We are looking forward to a close cooperation and supporting RecyClass by defining design guidelines for the optimization of the recyclability of plastic packaging.

Our IML label material can be recycled with bottle and cap, and the absence of adhesives further contributes to the simplification of the recycling process.

In addition to that IML does not use a release liner, which reduces waste and saves resources.

YUPO Europe GmbH becomes RecyClass Platinum Member

YUPO Europe GmbH is proud to join forces with the RecyClass initiative, becoming the most recent company to join the platform, which was started by Plastics Recyclers Europe, the leading European organization representing the voice of plastics recyclers, in 2018.

We are looking forward to a close cooperation and supporting RecyClass by defining design guidelines for the optimization of the recyclability of plastic packaging.

Our IML label material can be recycled with bottle and cap, and the absence of adhesives further contributes to the simplification of the recycling process.

In addition to that IML does not use a release liner, which reduces waste and saves resources.

CleanSort IML

With CleanSort IML (IPX105), YUPO is developing a next-generation in-mould labeling solution for HDPE packaging—still not commercialized, but already technically assessed and approved by RecyClass. Under defined conditions, RecyClass states the technology is “fully compatible” with existing European industrial HDPE recycling processes.

CleanSort IML

With CleanSort IML (IPX105), YUPO is developing a next-generation in-mould labeling solution for HDPE packaging—still not commercialized, but already technically assessed and approved by RecyClass. Under defined conditions, RecyClass states the technology is “fully compatible” with existing European industrial HDPE recycling processes.

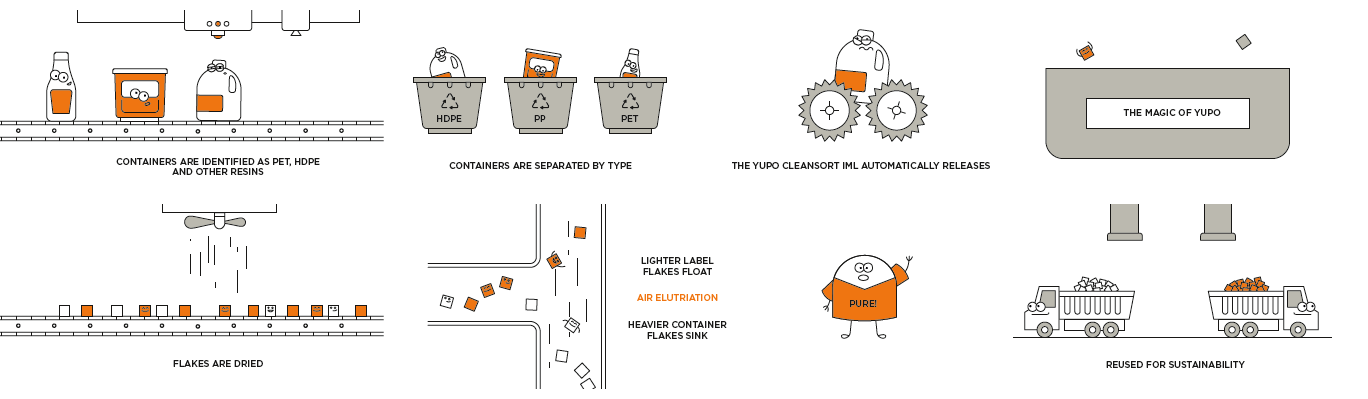

The CleanSort Process

Benefits of CleanSort

For white, light or natural bottles/containers.
Labels are liberated during recycling process.
Improved quality of PCR.
PCR: Increases supply, enhances quality & expands demand.
Improves economics for plastics reclaimers.

Eliminates solid waste b/c no liners.
Terrific shelf-appeal.
Most durable labeling method.
Simplifies the manufacturing process.
Saves time & warehouse space.

Many Grades, Many Solutions

YUPOIML continues to lead the industry in solutions for blow molding by offering multiple grades for your packaging design. Yupo also offers material for injection molding.

AISX – HDPE bottles
IZX – PP bottles -hot fill
AIUX – HDPE bottles – smooth, no orange peel
UAIB / ICF – ultra clear - no label look
LIX/LOX – designed for injection molding
CleanSort range for fully recyclable IML applications

And many more!

Many Grades, Many Solutions

YUPOIML continues to lead the industry in solutions for blow molding by offering multiple grades for your packaging design. Yupo also offers material for injection molding.

AISX – HDPE bottles
IZX – PP bottles -hot fill
AIUX – HDPE bottles – smooth, no orange peel
UAIB / ICF – ultra clear - no label look
LIX/LOX – designed for injection molding
CleanSort range for fully recyclable IML applications

And many more!

Version YUPO IML	Thickness microns	Grammage g/m²	Rolls mm × m	Core mm	Sheets mm × mm	Unit per ream	Print Method
AISX 105	107.00	82.70	1020 × 6858	152.4	n/a	n/a	UV Offset UV Flexo HP Indigo UV Rotary Letterpress Xeikon
AIUX 105	105.00	85.00	1020 × 6858	152.4	n/a	n/a	UV Flexo UV Offset UV Rotary Letterpress Xeikon HP Indigo
ICF 85	86.00	75.60	1020 × 6767	152.4	n/a	n/a	UV Flexo UV Rotary Letterpress Gravure UV Letterpress
IDF 80	81.00	75.20	1020 × 6767	152.4	n/a	n/a	Flexo Sheet-fed Offset UV Rotary Letterpress
IDF 100	101.00	92.00	1020 × 6767	152.4	n/a	n/a	Flexo Sheet-fed Offset UV Rotary Letterpress
IHC 75	75.00	69.00	1020 × 6767	152.4	n/a	n/a	UV Offset UV Flexo Letterpress
IZX 105	107.00	82.70	1020 × 6767	152.4	n/a	n/a	UV Offset UV Flexo UV Rotary Letterpress
LBR 80	80.00	66.00	1020 × 6767	152.4	n/a	n/a	Flexo Sheet-fed Offset UV Rotary Letterpress Silk Screen
LIX070	70.00	61.50	1020 × 6767	152.4	n/a	n/a	n/a
LOX075	75.00	57.80	1020 × 6767	152.4	n/a	n/a	n/a
UAIB 80	83.00	72.10	1020 × 6767	152.4	n/a	n/a	UV Flexo Gravure HP Indigo

YUPO IML Version

AISX 105

Thickness

107.00 microns

Grammage

82.70 g/m²

Rolls

mm × m

1020 × 6858

Core

mm

152.4

Sheets

mm × mm

n/a

Unit

per ream

n/a

Print Method

UV Offset, UV Flexo, HP Indigo, UV Rotary Letterpress , Xeikon

AIUX 105

Thickness

105.00 microns

Grammage

85.00 g/m²

Rolls

mm × m

1020 × 6858

Core

mm

152.4

Sheets

mm × mm

n/a

Unit

per ream

n/a

Print Method

UV Flexo, UV Offset, UV Rotary Letterpress , Xeikon, HP Indigo

ICF 85

Thickness

86.00 microns

Grammage

75.60 g/m²

Rolls

mm × m

1020 × 6767

Core

mm

152.4

Sheets

mm × mm

n/a

Unit

per ream

n/a

Print Method

UV Flexo, UV Rotary Letterpress , Gravure, UV Letterpress

IDF 80

Thickness

81.00 microns

Grammage

75.20 g/m²

Rolls

mm × m

1020 × 6767

Core

mm

152.4

Sheets

mm × mm

n/a

Unit

per ream

n/a

Print Method

Flexo, Sheet-fed Offset, UV Rotary Letterpress

IDF 100

Thickness

101.00 microns

Grammage

92.00 g/m²

Rolls

mm × m

1020 × 6767

Core

mm

152.4

Sheets

mm × mm

n/a

Unit

per ream

n/a

Print Method

Flexo, Sheet-fed Offset, UV Rotary Letterpress

IHC 75

Thickness

75.00 microns

Grammage

69.00 g/m²

Rolls

mm × m

1020 × 6767

Core

mm

152.4

Sheets

mm × mm

n/a

Unit

per ream

n/a

Print Method

UV Offset, UV Flexo, Letterpress

IZX 105

Thickness

107.00 microns

Grammage

82.70 g/m²

Rolls

mm × m

1020 × 6767

Core

mm

152.4

Sheets

mm × mm

n/a

Unit

per ream

n/a

Print Method

UV Offset, UV Flexo, UV Rotary Letterpress

LBR 80

Thickness

80.00 microns

Grammage

66.00 g/m²

Rolls

mm × m

1020 × 6767

Core

mm

152.4

Sheets

mm × mm

n/a

Unit

per ream

n/a

Print Method

Flexo, Sheet-fed Offset, UV Rotary Letterpress , Silk Screen

LIX070

Thickness

70.00 microns

Grammage

61.50 g/m²

Rolls

mm × m

1020 × 6767

Core

mm

152.4

Sheets

mm × mm

n/a

Unit

per ream

n/a

Print Method

n/a

LOX075

Thickness

75.00 microns

Grammage

57.80 g/m²

Rolls

mm × m

1020 × 6767

Core

mm

152.4

Sheets

mm × mm

n/a

Unit

per ream

n/a

Print Method

n/a

UAIB 80

Thickness

83.00 microns

Grammage

72.10 g/m²

Rolls

mm × m

1020 × 6767

Core

mm

152.4

Sheets

mm × mm

n/a

Unit

per ream

n/a

Print Method

UV Flexo, Gravure, HP Indigo

Let Your BrandShine Through

YUPO UltraClear

The premium, ultra clear, synthetic label substrate for use in IML bottle processes. With YUPOUltraClear, you have the unique opportunity to showcase your product on the shelf like never before.

• Eliminates bottle-to-label color matching – YUPOUltraClear allows your bottle’s exact resin color to show through the YUPO label, giving your design more brand power

• Is the IML option that resists scratching and fading, giving you added control of your bottle design and shelf appeal

• Features a beautiful, ultra-clear, no-label look

• Sizes manufactured to fit your needs – small and large quantities available

Let Your BrandShine Through

YUPO UltraClear

The premium, ultra clear, synthetic label substrate for use in IML bottle processes. With YUPOUltraClear, you have the unique opportunity to showcase your product on the shelf like never before.

• Eliminates bottle-to-label color matching – YUPOUltraClear allows your bottle’s exact resin color to show through the YUPO label, giving your design more brand power

• Is the IML option that resists scratching and fading, giving you added control of your bottle design and shelf appeal

• Features a beautiful, ultra-clear, no-label look

• Sizes manufactured to fit your needs – small and large quantities available

Enhance Your PackagingWith YUPO IML

Enhance your brand equity and bottle design options by choosing an in-mold label. Add uniqueness to your package with in-mold labels that can be printed with fluorescent and metallic inks, foil stamped, metallized, coated, spot coated or crafted using any other converting option you desire.

Enhance Your PackagingWith YUPO IML

Enhance your brand equity and bottle design options by choosing an in-mold label. Add uniqueness to your package with in-mold labels that can be printed with fluorescent and metallic inks, foil stamped, metallized, coated, spot coated or crafted using any other converting option you desire.

Let YUPO be YourLabel Partner

Our commitment starts with the first contact. Our sales and technical team is ready to answer all your questions and will help you to develop a packaging solution that is the right fit for your product and branding needs.

We work closely with molders, printers and other supply chain partners to ensure that your project will be efficient, profitable and successful.

Let YUPO be YourLabel Partner

Our commitment starts with the first contact. Our sales and technical team is ready to answer all your questions and will help you to develop a packaging solution that is the right fit for your product and branding needs.

We work closely with molders, printers and other supply chain partners to ensure that your project will be efficient, profitable and successful.
